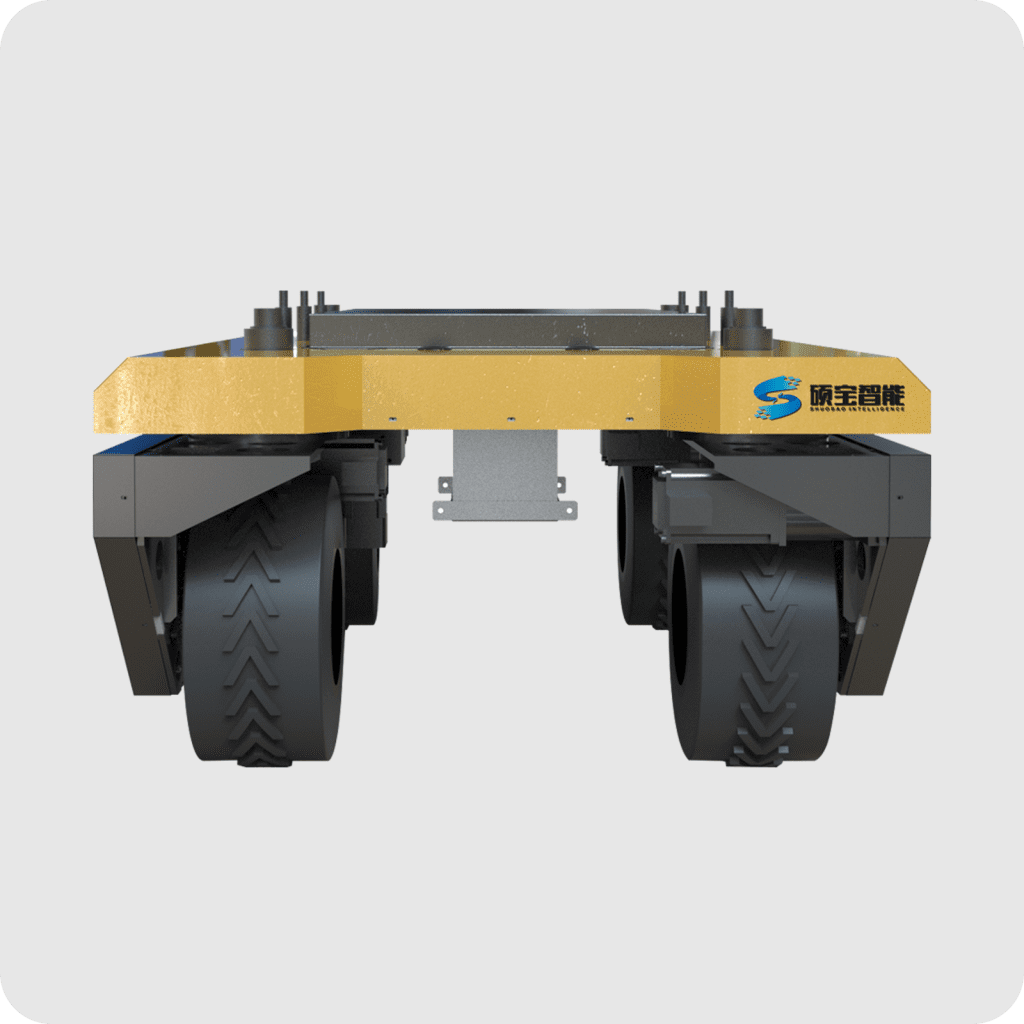

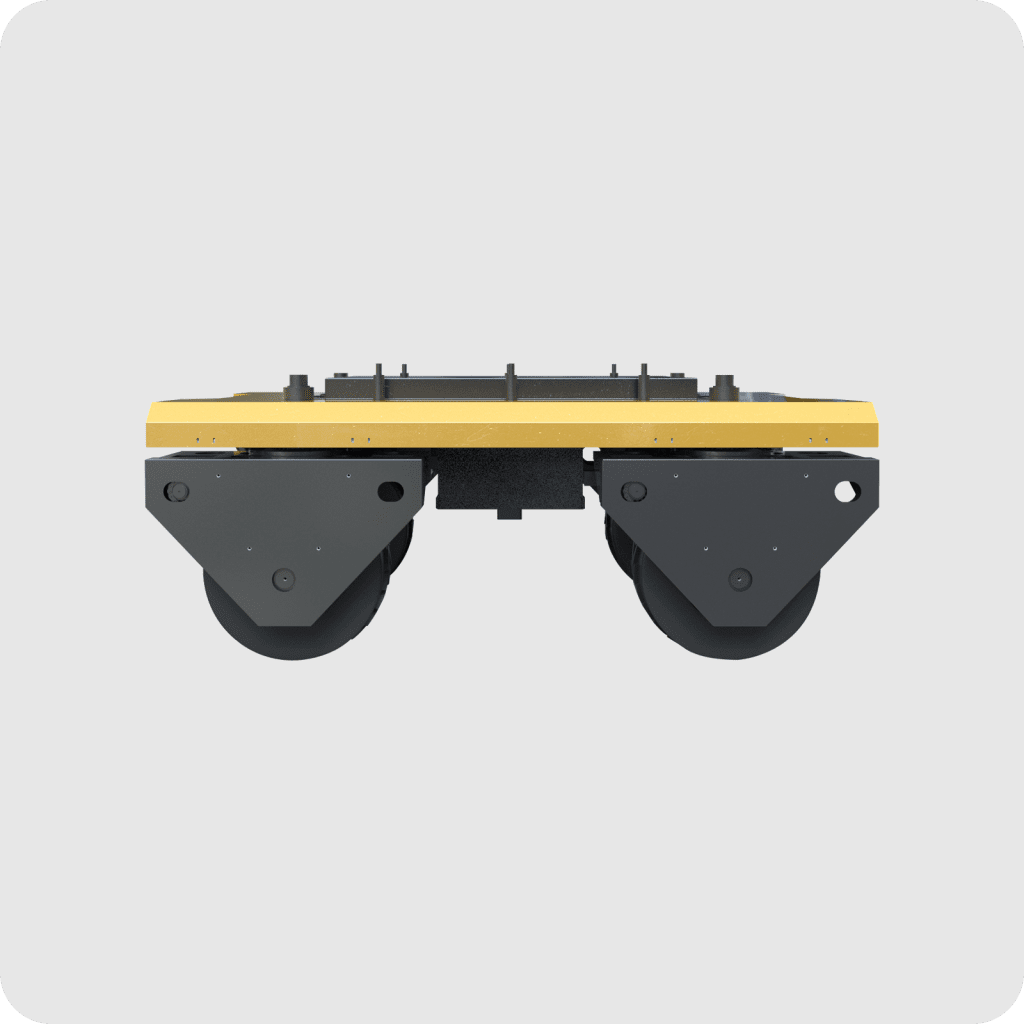

Four-Wheel Drive Unmanned Vehicle Chassis SQ-03

The four-wheel drive product is a wheeled chassis product with superior power performance, smooth operation, and strong ground adaptability, which has excellent comprehensive performance.
  • Heavy duty and efficient operation platform: With a self weight of 200kg and a horizontal load capacity of 400kg, the servo motor provides precise steering and motor braking, resulting in a 50% increase in handling efficiency under complex working conditions.
  • Dual power all-weather endurance: 48V80Ah high current lithium battery+220V AC dual power supply system, ≥ 3 hours of endurance, seamless switching and uninterrupted operation in outdoor/workshop scenarios.
  • Industrial grade sturdy protective galvanized rust proof body+precision planetary reducer, impact and corrosion resistance, wide temperature range of -15~55 ° C to ensure harsh operating conditions.
  • Intelligent closed-loop precise control of 0-4km/h speed closed-loop control, free switching of remote control/CAN/serial port protocols, millimeter level steering accuracy suitable for precision transportation on production lines.

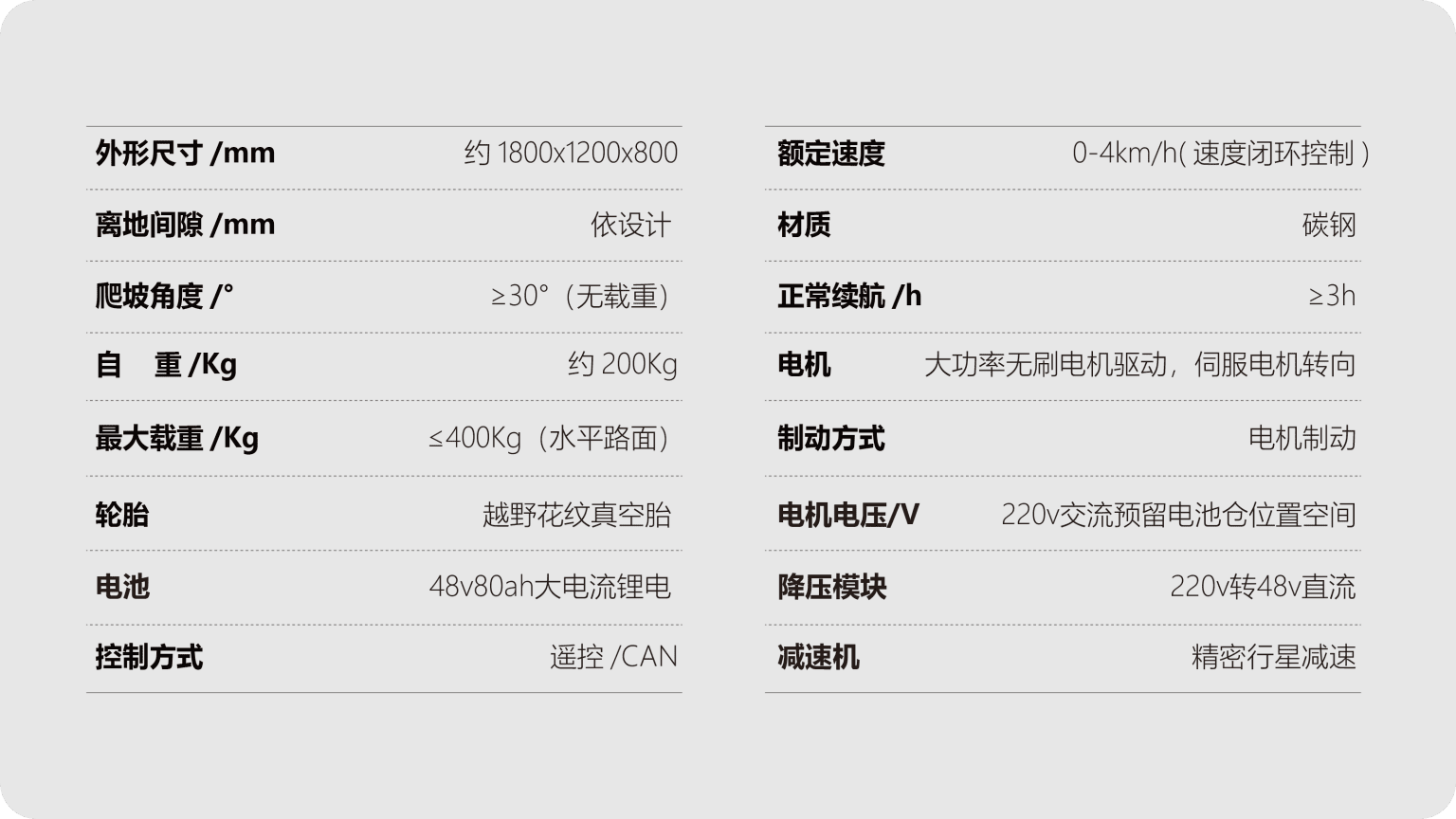

Specifications
