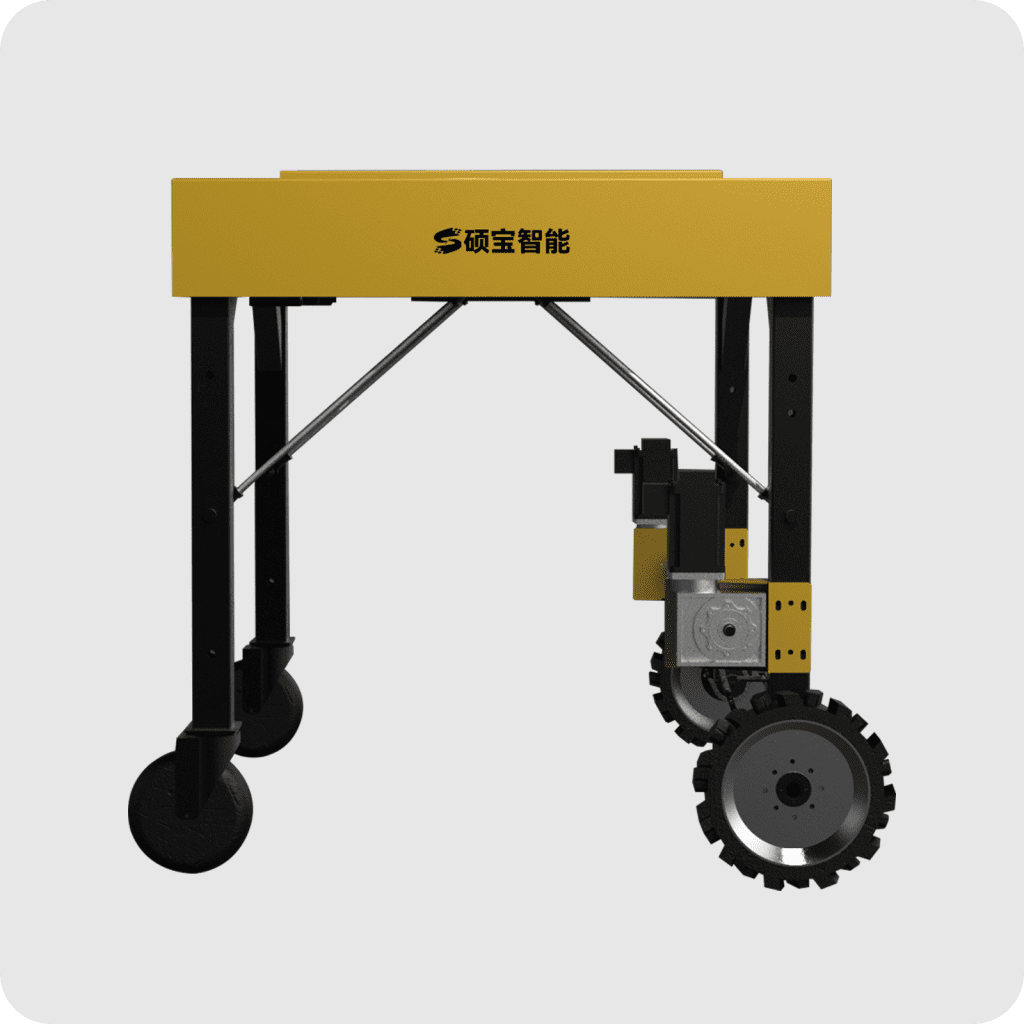

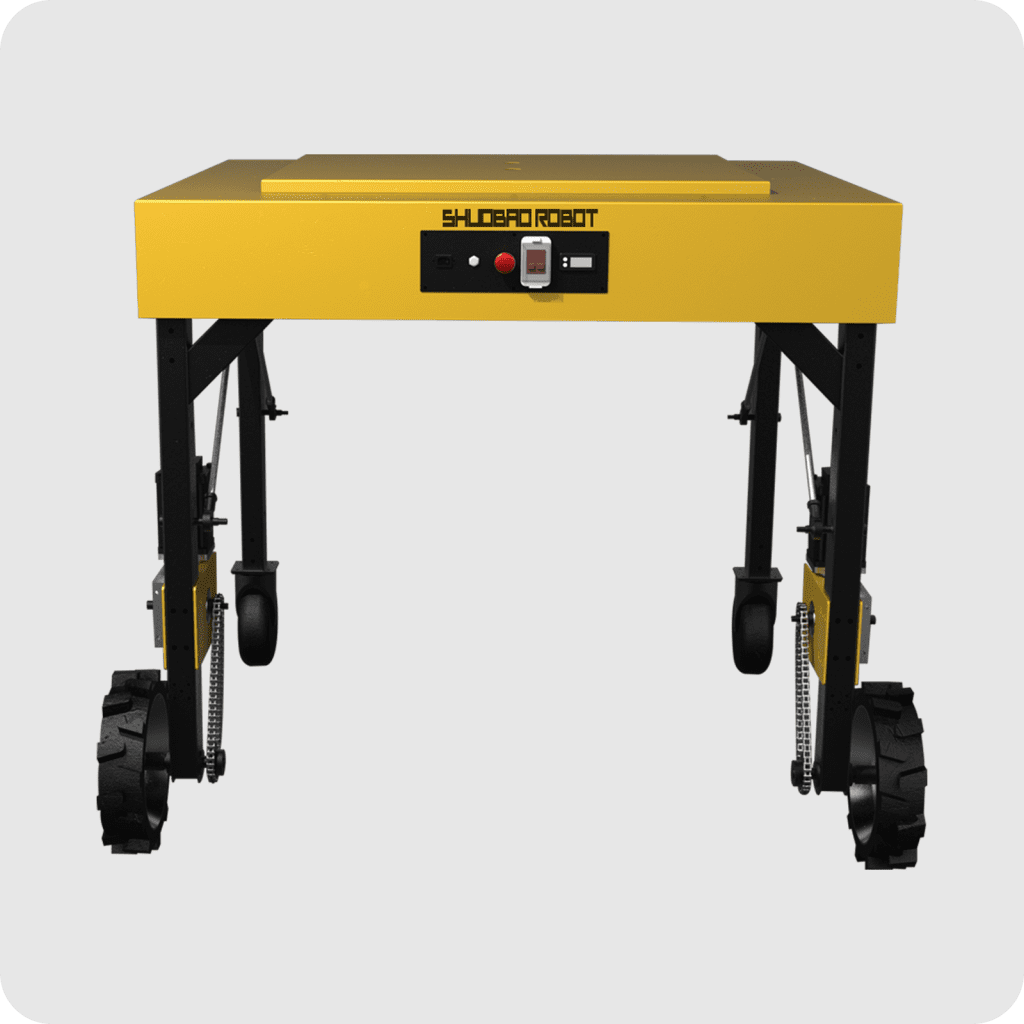

1100mm Ultra-High-Clearance
Agricultural Field Robot Platform
Designed for tall crops, inter-row operations, field ridges, drainage ditches, and complex agricultural environments, the platform features an 1100mm ultra-high-clearance structure, providing greater crop clearance, improved field mobility, and ample space for mounting agricultural equipment.
Designed for
Tall Crops
Conventional wheeled robots are better suited to low-growing crops, roads, and relatively flat operating environments. When crop height, row spacing, field ridges, and drainage ditches become the main constraints, the challenge is no longer simply whether the robot can move through the field, but how it can enter the working area without damaging the crops.
1100mm Is More Than
Just a Taller Chassis
The ultra-high-clearance structure changes the spatial relationship between the robot and the crops. By raising the vehicle body, the platform creates greater vertical clearance for tall-crop areas, inter-row movement, and the installation of agricultural equipment.
The 1100mm ground clearance provides greater space beneath the vehicle for operating among tall crops, reducing the height limitations that conventional low-clearance platforms may face in tall-crop areas.
The main body of the platform remains positioned at a higher level, making it better suited for agricultural robot applications that need to pass over crops or move between crop rows.
The ultra-high-clearance structure can be integrated with agricultural equipment mounting systems, providing greater flexibility for the overall vehicle layout and installation of vision, monitoring, data collection, and other operating equipment.
Built for Field Conditions,
Not Ordinary Roads
Movement paths in agricultural fields are often determined by crop row spacing, field ridges, drainage ditches, and uneven terrain. This platform is structurally designed around typical field conditions, with a focus on low-speed stability and adaptability to crop environments.
Tall-Crop Areas
Designed for corn, tall-stem vegetables, and other agricultural areas with tall crops, providing greater ground clearance beneath the vehicle body.
Inter-Row Movement
Designed for inter-row agricultural operations, the platform can be adapted in dimensions and structure according to crop height, row spacing, and specific operating requirements.
Field Ridges & Ditches
The higher vehicle body provides greater structural clearance for crossing field ridges, shallow ditches, and obstacles in agricultural fields.
Uneven Field Terrain
Suitable for low-speed agricultural operations on unpaved surfaces, including soil, grass, and uneven field terrain.
The Higher the Chassis,
the More Important Vehicle Stability Becomes
The 1100mm ultra-high-clearance design provides greater space for moving through tall crops, but it also means that uneven field terrain can have a more direct impact on vehicle movement.
The platform therefore uses spring suspension and terrain-adaptive structures to help absorb impacts from uneven agricultural terrain, helping maintain smoother and more stable low-speed movement in complex field environments.
For stable power during
low-speed field operations
The dual 1000W drive motors provide continuous propulsion power, while the 0–4 km/h low-speed operating range is well suited for agricultural robots performing observation, data collection, and equipment operations in crop areas.
Suitable for mobility on farmland with moderate slopes.
Suitable for low-speed agricultural robot movement and operations.
Maximum payload of 50 kg on level ground.
Equipped with a 48V 50Ah ternary lithium battery.
Starting from Crop Environments
Defining the Applications
This platform is better suited for robotic projects that require greater ground clearance, stable low-speed mobility, and agricultural equipment integration.
High-Stem Crop Inspection
Equipped with cameras, vision systems, and environmental sensors for data collection and crop growth monitoring in high-stem crop areas.
Inter-Row Crop Operations
Adapt the platform structure to different crop heights and row spacings, for agricultural robot projects operating between crop rows.
Farm Ridge and Ditch Traversal
Designed for agricultural mobility tasks involving field ridges, shallow ditches, and uneven terrain, providing greater ground clearance.
Agricultural Equipment Integration
Can integrate upper modules and the complete vehicle around monitoring, spraying, data collection, and other agricultural equipment.
From Mobile Platform
to Complete Agricultural Robot
The 1100mm platform is more than just a mobile chassis. It provides a mobile foundation for complete agricultural robots. The upper structure can be customized according to the target crop, operating height, equipment weight, and mounting position.
For agricultural robotics companies, agricultural equipment manufacturers, and system integrators, structural, electrical, and complete vehicle development can be tailored to specific project requirements.

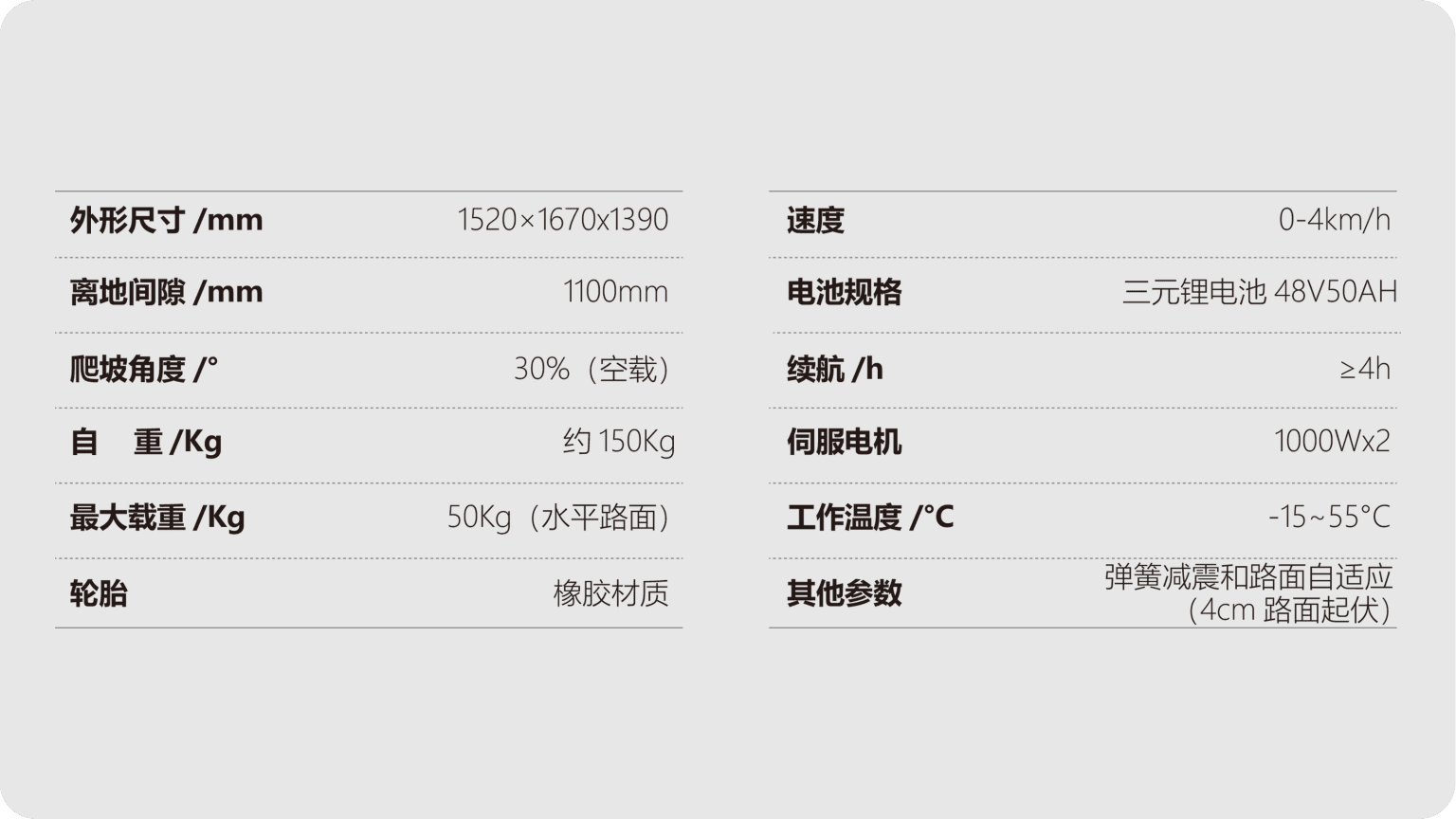

Technical Specifications
* Actual runtime may vary depending on payload, terrain, operating mode, ambient temperature, and mounted equipment.
FAQs About the 1100mm Ultra-High-Clearance Agricultural Robot Platform
What applications is this 1100mm ultra-high-clearance platform designed for?
It is primarily designed for high-stem crops, inter-row operations, field ridges and ditches, and other complex agricultural environments, especially agricultural robotics projects that require greater ground clearance and more vertical space for crop passage.
Why is an ultra-high 1100mm ground clearance needed?
The 1100mm ground clearance provides greater vertical passage space in high-stem crop areas while allowing more room for agricultural equipment mounting and overall vehicle layout.
Can this platform handle uneven farmland terrain?
The platform features spring suspension and terrain-adaptive structure, designed to accommodate approximately 4cm of terrain variation and help absorb impacts caused by uneven farmland surfaces.
Can agricultural equipment be mounted on the platform?
Yes. The platform can integrate monitoring, vision, spraying, data collection, and other agricultural equipment according to project requirements, with customized mounting structures available for upper modules.
Does the platform support OEM/ODM customization?
Yes. Shuobao Intelligent can customize the platform dimensions, structure, electrical system, and complete vehicle solution based on crop height, row spacing, operating environment, equipment weight, and specific task requirements.
Develop Your Ultra-High-Clearance Agricultural Robot
From the 1100mm ultra-high-clearance mobile platform to a complete agricultural robot, Shuobao Intelligent provides structural, electrical, and OEM/ODM custom development support.
